Our S/D ZAP Screws are designed for connecting LSF components together through pre-punched holes or by self-drilling.
Below is a PDF guide for the different screw types per application which will open in a new tab once you have clicked on it:
Screw Code & Description
Wafer Head Steel Fix Class 3
SD1016W2Z3FT | #10-24X16MM ZAP S/D SCREW WAFER #2 F/T CL 3 |
SD1016W2Z3FTSQ | #10-20X16MM ZAP S/D SCREW WAFER #2 F/T CL3 SQD |
SD1016W3Z3 | #10-16X16MM ZAP S/D SCREW WAFER #3 CL 3 |
SD1022W3Z3 | #10-16X22MM ZAP S/D SCREW WAFER #3 CL 3 |
SD1022W3Z3SQ | #10-16X22MM ZAP S/D SCREW WAFER #3 SQD CL 3 |
SD1216W1Z3SQ | #12-24X16MM ZAP S/D SCREW WAFER #1 F/T SQD CL 3 |
SD1222W3SQZ3 | #12-20X22MM ZAP S/D SCREW WAFER #3 SQD CL 3 |
SD1416W1PH3Z3 | #14X16MM ZAP STITCHING SCREW WAFER PH3 CLASS 3 |
SD1422W3Z3 | #14X22MM ZAP STITCHING SCREW WAFER PH3 CLASS 3 |
Internal & External Wall Fixings
SD0845CSW2Z3 | #8X45MM S/D SCREW CSK WINGS CL 3 | MGO to LSF |
SD1035CS2Z3 | #10X35MM S/D CSK CL 3 | MGO to LSF |
DW0632SD | #6X32MM S/D DRYWALL SCREW | Gypsum to LSF |
DW0641SD | #6X41MM S/D DRYWALL SCREW | Mesh to LSF |
Floors
SD0832CSW2Z3 | #8X32MM ZAP S/D SCREW CSK WING CL3 | MGO to Joist |
SD1035CS2Z3 | #10X35MM ZAP S/D CSK CL3 | MGO to Joist |
SD1016W2Z3FTSQ | #10X16MM ZAP S/D SCREW WAFER F/T SQD CL3 | Joist to Wall Panel |
SD1016W2Z3FTSQ | #10X16MM ZAP S/D SCREW WAFER F/T SQD CL3 | IBR to Joist |
Roofing
LSF Pierced Fix Screws Class 3

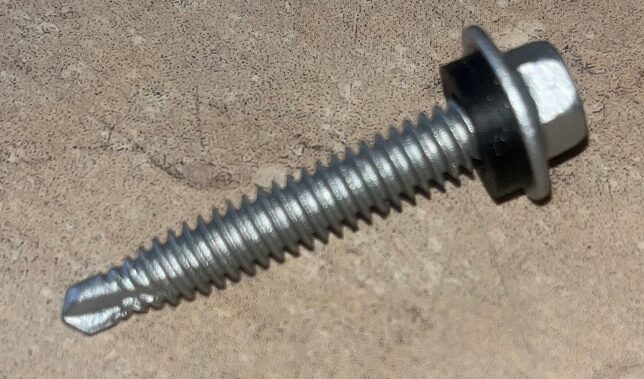

| SDM638HWH2Z3G | M6X38MM ZAP S/D SCREW HWH CL3 + SEAL | Corrugated |
| SDM660HWH2Z3G | M6X60MM ZAP S/D SCREW HWH CL3 + SEAL | IBR |
